JOHN-DEERE 544B PARTS

John-Deere 544B Transmission Parts, Torque Converter Parts, Axle Parts, Differential Parts, Planetary Parts

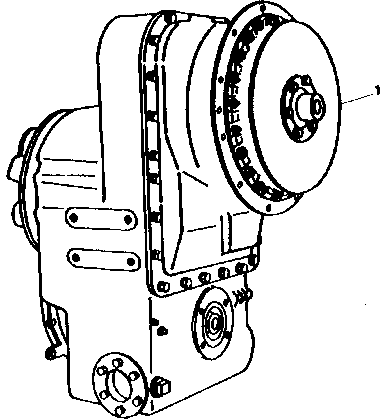

Transmission Parts

Transmission Assy. # AT73770   with rear axle disconnect

Allison Model # TT2421-1 BM # 23010702

Torque Converter Parts

Turbine first # AT38764   also order # T40159

Turbine Second # AT40677   sub # AT103783

Stator # T41519

Pump # AT38766   sub for # AT64328

Accessory Drive Gear # T39987   sub # T54037

Prior to s/n# 56941

Accessory Drive Gear # T54037   sub # AT52190

Pump Drive Gear # T30921   42 teeth

Gear # T27929   24 teeth

Gear # T58943   46 teeth   sub for # T38669

Gound Sleeve # T27922

Torque Converter Housing # AT38762

Torque Converter Cover # T39997   6 mh

Input Shaft # T39996   6 mh

Flange Yoke # T39991

Turbine Driven Gear # T40210

Cage # T38975

Cam # AT37789

Gear # T27830   60 teeth

Hydraulic Pump Assy.   charging # AT72878

(sub for # AT28273 and AT54791) (also order # AT68628) (SARAN UNITS also order AT68628)

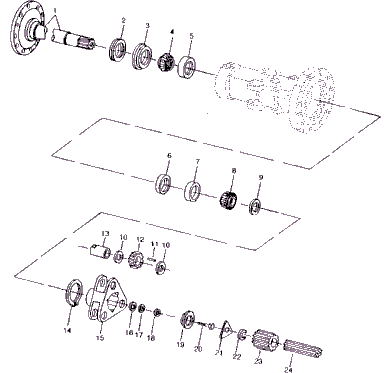

Axle, Differential & Planetary Parts

Axle Assy. #

Axle Housing # AR64996 Marked # R76838 or R76841

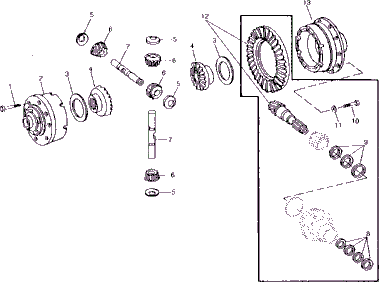

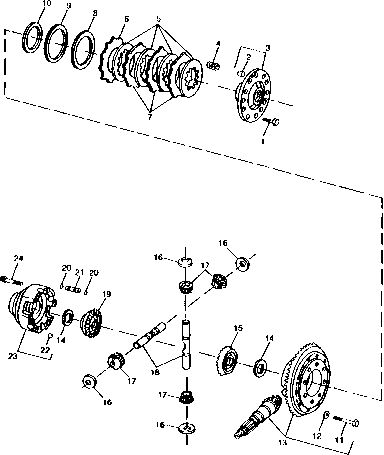

Differential Assy. #

Gear Set ¨Crown marked # R44383 & Pinion marked # R41977¨

# RE11399 # AR45732 # RE50114

Side Gear # R51971

Pinion Spider Gear # R68170

Spider Shaft # R70111

Yoke, front # R98660 # R42050 # RE45314

Yoke, rear # R98660 # R42050 # RE45314

No-spin # AR72853

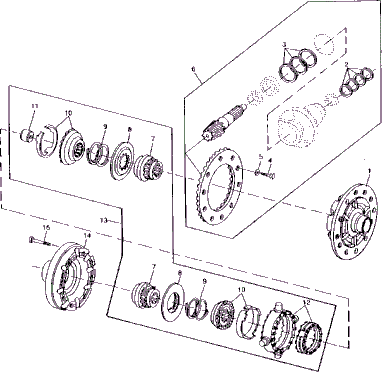

Planetary Carrier Assy. #

Carrier # R69457 replaced by # R82919, R82918 and R48437

Carrier # R82919

Pinion Gear # R55606

Pinion Shaft # R63112

Sun Gear # R55607

Sun Gar Drive Shaft # R55608

Ring Gear # R76844 R76844

Axle Shaft = Spindle # R82978 R69206

Hydraulic Pump Assy. # AR56160
