JOHN-DEERE 544D PART

John-Deere 544D Transmission Parts, Torque Converter Parts, Axle Parts, Differential Parts, Planetary Parts

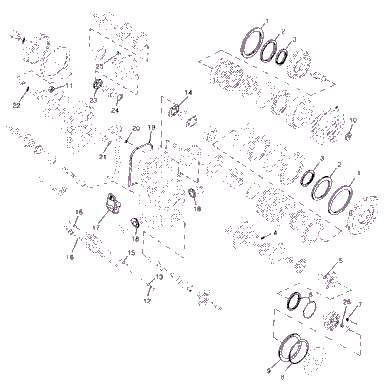

Transmission Parts

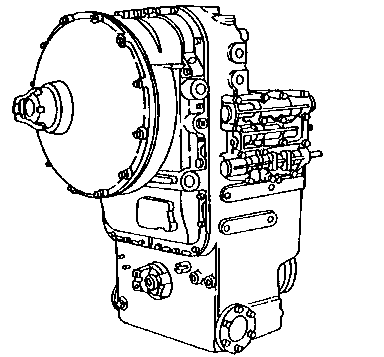

Transmission Assy. # AT85235   # AT115625

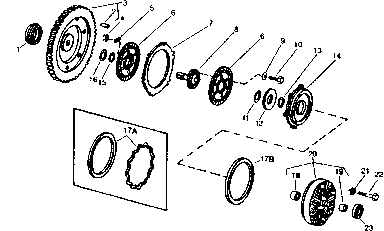

Torque Converter section

Turbine first # AT38764

Turbine second # AT103783   # AT40677   # T102818

Stator # T41519

Pump Assy. # AT38766   # AT64328

Accessory Drive Gear 42 teeth # T54037

Torque Converter Cover section

Input Flange Yoke # T39991

Input Shaft # T39996

Cover # T39997

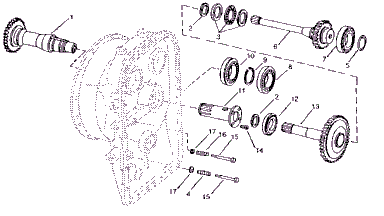

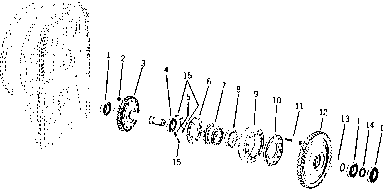

Torque Converter Turbine Drive Gears

Gear 42 teeth # T30921

Ground Sleeve # T27922

Gear 24 teeth, first turbine driven # T27929

Gear 46 teeth, second turbine driven # T58943

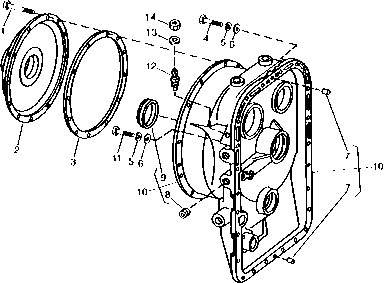

Torque Converter Housing & Cover section

Cover # T39995

Housing # AT38762

Gear 38 teeth, second turbine driven # T40210

Cam # AT37789

Needle Roller # T27824

Gear 60 teeth, first turbine driven # T27830

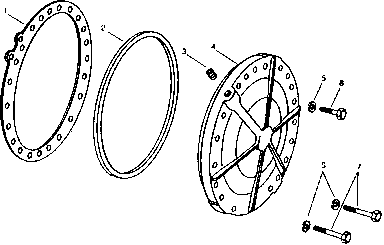

Transmission Front Cover section

Front Cover # T66716

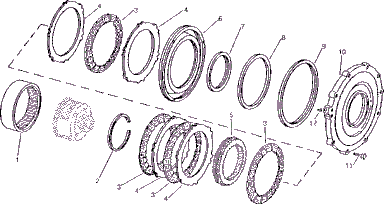

Transmission Low Clutch section

Ring Gear # T57109

Plate - disc inner # T67544

Plate - disc outer # T38974

Ring Gear # T61058

Piston, forward # T38980

Housing, forward piston # T38981

Transmission Reverse Clutch section

Piston, reverse # T38979

Gear 21 teeth, forward & reverse sun # T27835

Plate - disc outer # T38974

Plate - disc inner # T67544

Anchor Assy. # AT37790

Planet Carrier Assy. # AT38761

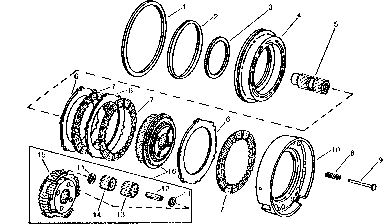

High Range Clutch section

Gear 57 teeth, without feller buncher # AT78241

Gear 52 teeth, with feller-buncher # AT38767

Plate - disc # T27858

Plate - disc outer # T38974

Hub # T40209

Piston # T71600

Housing # AT37483

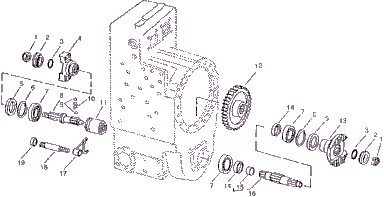

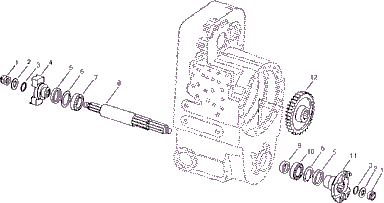

Transmission Output Shaft section

- without rear axle disconnect

Flange Yoke, output shaft # T49117

Shaft, output # T49118

Flange Yoke # T49116

Gear 39 teeth, without feller-buncher # T78674

Gear 44 teeth, with feller-buncher # T81057

- with rear axle disconnect

Flange Yoke, output shaft # T49117

Shaft, output # T49119

Coupling # T35548

Gear 39 teeth # T78674

Flange Yoke # T49116

Shaft # T47612

Fork # T35532

Shaft # T35531

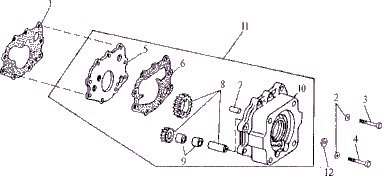

Hydraulic Pump Assy., charging # AT72878

Transmission Overhaul Kit # AT68639

Axle, Differential & Planetary Parts

Axle Assy. #

Axle Housing # AR64996   Marked # R76838

Axle Housing # RE22605  - with front axle on feller-buncher   # R83080

Differential Assy. #

Gear Set ¨Crown marked # R44383 & Pinion marked # R41977¨

# RE11399   # AR45732   # RE50114

Side Gear # R51971

Pinion Spider Gear # R68170

Spider Shaft # R70111

Yoke, front # R98660   # R42050   # RE45314

Yoke, rear # R98660   # R42050   # RE45314

No-spin # AR72853

Planetary Carrier Assy. #

Carrier # R82919

Carrier, front # R83082 - with front axle on feller-buncher

Pinion Gear # R55606

Pinion Shaft # R63112

Sun Gear # R55607

Sun Gar Drive Shaft # R55608

Ring Gear # R6844

Axle Shaft = Spindle # R82978

Axle Shaft = Spindle # R74992  - with front axle on feller-buncher
